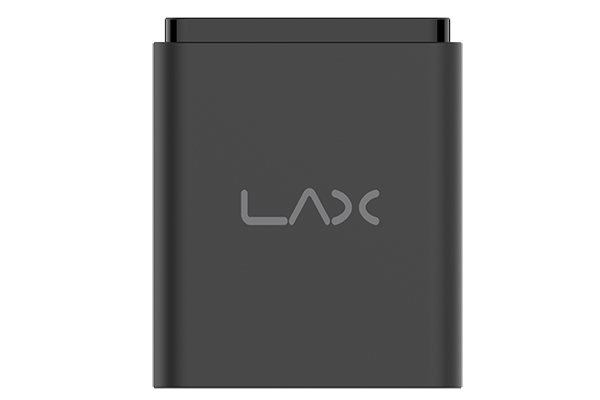

LE20 20米量程，IP65防护等级，精致的外观
LE20是L10的升级产品，在保证精度的同时将量程增加到了20m， 防护等级提升到了IP65，以满足各种户外应用。
量程: 0.05-20m；精度: 5%
速度: 100HZ；通讯: UART
防护等级: IP65
- 基于飞行时间算法
- 量程20米
- 防护等级IP65
- 精致外观
- 量程：0.05 ~ 20m
- 精度 0.05-2m：±2cm；2-20m：5%
- 速度：100Hz
- 分辨率：1cm
- 抗环境光：100K LUX
- 波长：780nm
- 工作温度：-10~60℃
- 存储温度：-20~70℃
- 供电电压：3.5~5.5 VDC
- 功耗：≤80mA@5V
- 接口：UART
- 波特率：115200
- 通讯电压：TTL 3.3 VDC
- 协议：Customize
- 材质：ABS+PC
- 尺寸：20 * 22 * 14mm
- 重量：11g
Coming soon
Coming soon
Coming soon
Multiplex Fiberheads
The OptoMET Dual Fiber SWIR Vibrometer consists of a SWIR vibrometer and a flexible Dual-Fiber head. Using an additional fiber switch multiple fiber heads can be connected to the vibrometer, so you can multiplex many
different channels (2, 4, 8, 16, ...), the fiber switch comes with an electrical interface (Ethernet, USB, TTL, ...) and can be remotely operated by a PC.
Device Datasheet & Information about Laser Vibrometry
Accessories
Single Point Vibrometer Transport Case
Stable and waterproof Peli case for safe keeping and transport of vibrometer.
External dimension (L x B x H): 61.9 x 49.2 x 22.3 cm
Transport Bag
Compact und light transport bag for the outdoors-measurements
IR-Detector Card
Transforming the not-visible infrared light into a spot of visible light.
Mobile Battery
Portable battery charger, external battery power bank. For powering the vibrometer when performing outdoor measurements.
Tranport Case for Autofocus Fiber Head
Stable and waterproof transport case.
Tranport Case for Manual Focus Fiber Head
Stable and waterproof transport case.
Tripod with Fluid Head
Precisely align your vibrometer with high quality tripods by Manfrotto
Positioning Stage
Precisely align your Fiber measurement head.
